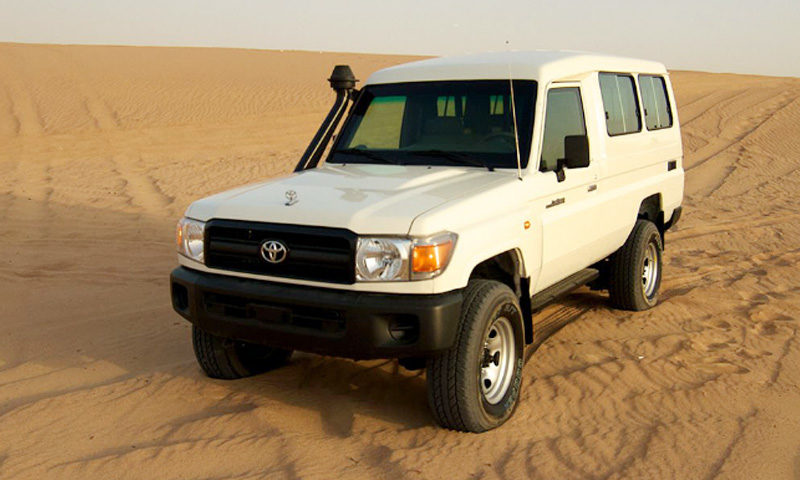

TOYOTA LAND CRUISER GRJ 78, MY17 B6 ARMORED

Engine:

  • Petrol 4.0 litre
  • 6 Cylinder, V Type
  • Output Hp/rpm 129/3800
  • Torque Kg-m/rpm 29/2200

Transmission:

  • 5-Speed Manual transmission

Dimensions & Capacities:

  • Length: 4990 mm
  • Width: 1790 mm
  • Height: 2115 mm
  • Fuel Tank Capacity: 90l+90l
  • Seating Capacity: 9 Seats
  • Tyres: 7.50r16-8e 5.50f Steel

Suspension & Brake System:

  • Front Leading Arm; Rear Leaf Spring
  • Ventilated disc brakes

Interior Features & Safety:

  • Speedometer
  • Benchtype Front Seat
  • Manual Air Conditioning
  • Seconed Row Seat Parallel For 6 Passengers
  • Power Steering
  • Third Row Seat Parallel For 4 Passengers
  • Tilt And Telescopic Steering Column (manual)
  • Glove Box
  • 4 Spoke Urethane Steering Wheel
  • Cup Holders
  • Dual Front Airbags
  • Rear Differential
  • Anti Lock Braking System (abs)
  • Electronic Brake Force Distribution (ebd)
  • Tire Inflation Pressure Warning
  • Active Traction Control (atrc)
  • Hill Assist Control (hac)
  • Brake Assist (ba)
  • Fabric Seats
  • Vehicle Stability Control (vsc)
  • Audio/am/fm/cd
  • 2 Speakers

External
• Steel Wheel Rims with 7.50R16 tires.
• Super Long Wheel Base.
• Rear Door-Mounted Spare Wheel.
• Halogen Driving Lamps.
• Towing Hook – Front – Closed, Rear – Pinter.
• Black Rear Bumper.
• Mud Flaps (Front & Rear)
• Snorkel Air Filter cleaner.

Ballistic Specifications: B6 level are armoured using materials, both opaque and transparent, that meet or exceed the requirements of the European CEN 1522/23 and CEN 1063 standards to the level FB6 for opaque areas and BR6 for transparent areas.

Armouring: All four sides of the passenger compartment and the roof of the vehicle are protected using high-quality armour steel
and glass defeating 7.62x51mm M80 Nato Ball ammunition (U.S. NIJ level III, CEN level FB6/BR6) and 5.56×45 SS109 ammunition (CEN level FB5/BR5 and FB6/BR6) at 0° incidence (90° to the surface) and 10m range according to CEN1063 and CEN1522.

Opaque Areas: All opaque areas including the roof are protected against the following and all lesser weapons/ ammunitions at 90° impact angle in accordance with the above specifications.

  • Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
  • Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
  • Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle

Transparent Areas: All transparent areas are multi-layer and polycarbonate coated to protect against the following and all lesser weapons/ ammunitions at 90° impact angle in accordance with the above specifications.

  • Calibre 7.62 x 39 mm, FJ/PB/FeC, AK 47 Kalashnikov
  • Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
  • Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle

Floor: The floor of the vehicle is designed to defeat the following hand grenades

  • Two DM 51 (German Norm) detonated simultaneously

In addition, the floor also offers protection against anti-personnel mines.

Armouring design:

  • The armouring is integrated inside the vehicle’s cab and forms a complete self-supporting structure so as to avoid excessive stress on the vehicle’s original structure.
  • The interior armour-frame provides overlap for the large-surface armour components such as the door armour-plates and the windows.
  • Hinge mounting points are reinforced both in the pillars and in the doors in a way that the armouring of the door is supported by the armouring of the pillar.
  • Heavy-duty hinges with in-built door-stop.
  • Fuel-tank(s) protected with steel armour-plates.
  • The battery and control module of the engine are protected 6.5mm high-quality armour steel.

Test Reports/ Product Liability:

All materials used in the production of the cabin were successfully tested against projectiles and explosives by independent laboratories. Test reports can be presented upon request or during a factory visit. The armouring of the vehicle provides protection against a wide range of projectiles and explosives. However, complete protection is not possible for reasons of design and modern military weapon technology.

Additional equipment included:

  • ECM and battery protection
  • Fuel-tank protection
  • Upgraded suspension to cope with the additional weight due to armouring
  • Run-flat systems on all 5 wheels

Further optional equipment: Further optional equipment available at extra cost, such as

  • Operable front door windows
  • Ballistic radiator protection
  • Full engine sides protection
  • Brake upgrade – stage 2 (slotted discs and braided hoses + HD callipers and pads)
  • Brake upgrade – stage 3 (big discs, 6-piston callipers front, 4-piston callipers rear and pads)
  • Suspension upgrade – stage 2 (HD antiroll bars)
  • Suspension upgrade – stage 3 (high performance springs and dampers for high-speed driving)
  • Heavy Duty 18” alloy rims with run-flats
  • Gun-ports
  • 2-way intercom
  • Police siren and Public-Address system
  • Front and rear strobe-lights integrated in OEM light lenses
  • Bull-bar
  • Communications equipment (VHF, UHF, satellite…)
  • Electronic Counter Measure Equipment (RF Jammer)
  • Video recording/surveillance equipment
  • Higher ballistic protection level
  • Additional blast protection
