Engine and Overview :

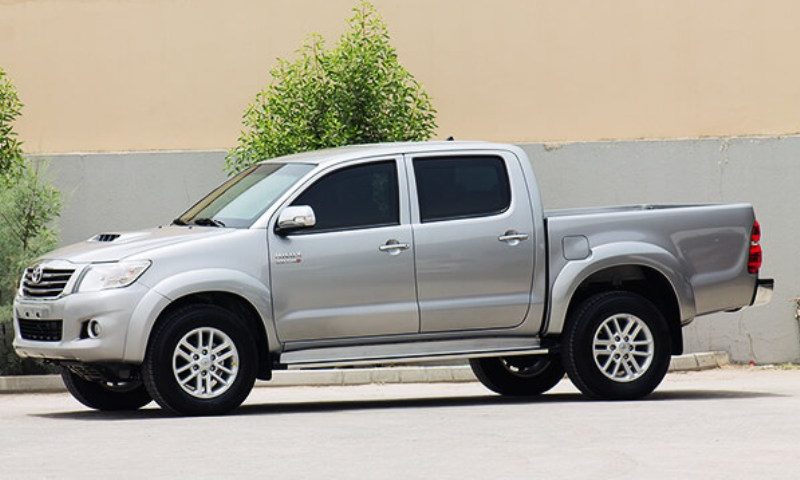

- Toyota Hilux 4WD, LHD
- Engine: 3.0L 4-Cylinder Diesel DOHC 16-valve Turbo Intercooler
- Output 120kW@3,400rpm 343Nm@1,400-3,200rpm
- Transmission: 5-speed automatic
- Body Type: 4-door Double-Cab Pick-up Truck
Interior Features & Safety :
- Single Air Conditioner
- ABS
- AM/FM/CD-2 spks
- Front Seats Separate
- Side Step
- Front Heater with Evaporator
- Outside rear view mirror – chrome and electric
- Inside Mirror
- Floor Mats
- Power Windows + Central Locking
Exterior Features :
- 15-Inch Steel Wheels
- Body Stripe
- Front and Rear Mudguards
- Spare Wheel Anti – Theft Lock
- Seat Belt Warning- 3PELR*2
- Fabric Door Trim
- Wheel Cap with Center Ornaments
- Tire: 255/70R15C
- Halogen Headlamps
- Front Fog Lamps
Ballistic Specifications: B6 level is armored using materials, both opaque and transparent, that meet or exceed the requirements of the European CEN 1522/23 and CEN 1063 standards to the level FB6 for opaque areas and BR6 for transparent areas.
Armouring: All four sides of the passenger compartment and the roof of the vehicle are protected using high-quality armor steel
and glass defeating 7.62x51mm M80 Nato Ball ammunition (U.S. NIJ level III, CEN level FB6/BR6) and 5.56×45 SS109 ammunition (CEN level FB5/BR5 and FB6/BR6) at 0° incidence (90° to the surface) and 10m range according to CEN1063 and CEN1522.
Opaque Areas: All opaque areas including the roof are protected against the following and all lesser weapons/ ammunition at 90° impact angle in accordance with the above specifications.
- Calibre 7.62 x 39 mm, FJ/PB/FEC, AK 47 Kalashnikov
- Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
- Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle
Transparent Areas: All transparent areas are multi-layer and polycarbonate coated to protect against the following and all lesser weapons/ ammunition at 90° impact angle in accordance with the above specifications.
- Calibre 7.62 x 39 mm, FJ/PB/FEC, AK 47 Kalashnikov
- Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
- Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle
Floor:
The floor of the vehicle is designed to defeat the following hand grenades
- Two DM 51 (German Norm) detonated simultaneously
In addition, the floor also offers protection against anti-personnel mines.
Armouring design:
- The armoring is integrated inside the vehicle’s cab and forms a complete self-supporting structure so as to avoid excessive stress on the vehicle’s original structure.
- The interior armor-frame provides overlap for the large-surface armor components such as the door armor-plates and the windows.
- Hinge mounting points are reinforced both in the pillars and in the doors in a way that the armoring of the door is supported by the armoring of the pillar.
- Heavy-duty hinges with in-built door-stop.
- Fuel-tank(s) protected with steel armor-plates.
- The battery and control module of the engine are protected 6.5mm high-quality armor steel.
Test Reports/ Product Liability:
All materials used in the production of the cabin were successfully tested against projectiles and explosives by independent laboratories. Test reports can be presented upon request or during a factory visit. The armoring of the vehicle provides protection against a wide range of projectiles and explosives. However, complete protection is not possible for reasons of design and modern military weapon technology.
Additional equipment included:
- ECM and battery protection
- Fuel-tank protection
- Upgraded suspension to cope with the additional weight due to armoring
- Run-flat systems on all 5 wheels
Further optional equipment: Further optional equipment available at extra costs, such as
- Operable front door windows
- Ballistic radiator protection
- Full engine sides protection
- Brake upgrade – stage 2 (slotted discs and braided hoses + HD calipers and pads)
- Brake upgrade – stage 3 (big discs, 6-piston calipers front, 4-piston calipers rear and pads)
- Suspension upgrade – stage 2 (HD antiroll bars)
- Suspension upgrade – stage 3 (high-performance springs and dampers for high-speed driving)
- Heavy Duty 18” alloy rims with run-flats
- Gun-ports
- 2-way intercom
- Police siren and Public-Address system
- Front and rear strobe-lights integrated into OEM light lenses
- Bull-bar
- Communications equipment (VHF, UHF, satellite…)
- Electronic Counter Measure Equipment (RF Jammer)
- Video recording/surveillance equipment
- Higher ballistic protection level
- Additional blast protection
