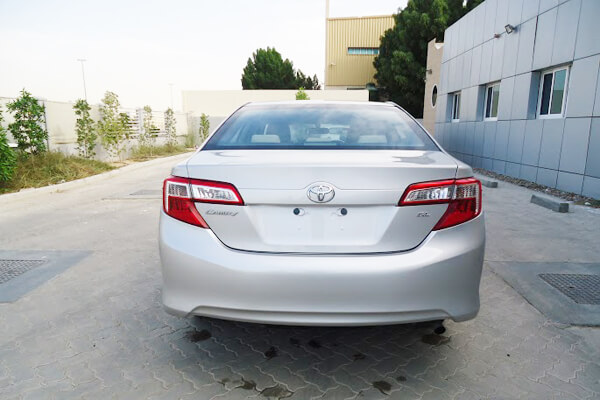

TOYOTA CAMRY 2.5 L , MY 17, B6 ARMORED

Engine

• Engine : 2.5L I4 / 3.5L V6
• HP 178 hp to 268 hp
• Transmission : Automatic
• Protection Level: B6

Interior Features

• 3-Spokes Urethane Steering Wheel
• Airbag (Driver + Passenger)
• Ashtray & Cup Holders
• CD/DVD/MP3/AUX/Radio with 6-Speakers
• Rear Parking Sensors
• Fabric Seat Material
• Rubber Floor Mat
• Wireless Door Lock (Key Less Entry)

Exterior Features

• Power Outside View Mirror
• Rear LIP Spoiler
• Rear Parking Sensors (4 Eyes)
• Dimensions : W – 1,820mm | L – 4,800mm | H – 1,480mm
• Wheelbase : 2,770mm
• Suspension : Suspension components are reinforced

Ballistic Specifications: B6 level is armored using materials, both opaque and transparent, that meet or exceed the requirements of the European CEN 1522/23 and CEN 1063 standards to the level FB6 for opaque areas and BR6 for transparent areas.

Armouring: All four sides of the passenger compartment and the roof of the vehicle are protected using high-quality armor steel
and glass defeating 7.62x51mm M80 Nato Ball ammunition (U.S. NIJ level III, CEN level FB6/BR6) and 5.56×45 SS109 ammunition (CEN level FB5/BR5 and FB6/BR6) at 0° incidence (90° to the surface) and 10m range according to CEN1063 and CEN1522.

Opaque Areas: All opaque areas including the roof are protected against the following and all lesser weapons/ ammunition at 90° impact angle in accordance with the above specifications.

  • Calibre 7.62 x 39 mm, FJ/PB/FEC, AK 47 Kalashnikov
  • Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
  • Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle

Transparent Areas: All transparent areas are multi-layer and polycarbonate coated to protect against the following and all lesser weapons/ ammunition at 90° impact angle in accordance with the above specifications.

  • Calibre 7.62 x 39 mm, FJ/PB/FEC, AK 47 Kalashnikov
  • Calibre 5.56 x 45 mm, FJ/PB/SCP, M16 Colt
  • Calibre 7.62 x 51 mm, FJ/PB/SC, (FN) “FAL” / “LAR” NATO rifle

Floor:

The floor of the vehicle is designed to defeat the following hand grenades

  • Two DM 51 (German Norm) detonated simultaneously

In addition, the floor also offers protection against anti-personnel mines.

Armouring design:

  • The armoring is integrated inside the vehicle’s cab and forms a complete self-supporting structure so as to avoid excessive stress on the vehicle’s original structure.
  • The interior armor-frame provides overlap for the large-surface armor components such as the door armor-plates and the windows.
  • Hinge mounting points are reinforced both in the pillars and in the doors in a way that the armoring of the door is supported by the armoring of the pillar.
  • Heavy-duty hinges with in-built door-stop.
  • Fuel-tank(s) protected with steel armor-plates.
  • The battery and control module of the engine are protected 6.5mm high-quality armor steel.

Test Reports/ Product Liability:

All materials used in the production of the cabin were successfully tested against projectiles and explosives by independent laboratories. Test reports can be presented upon request or during a factory visit. The armoring of the vehicle provides protection against a wide range of projectiles and explosives. However, complete protection is not possible for reasons of design and modern military weapon technology.

Additional equipment included:

  • ECM and battery protection
  • Fuel-tank protection
  • Upgraded suspension to cope with the additional weight due to armoring
  • Run-flat systems on all 5 wheels

Further optional equipment: Further optional equipment available at extra costs, such as

  • Operable front door windows
  • Ballistic radiator protection
  • Full engine sides protection
  • Brake upgrade – stage 2 (slotted discs and braided hoses + HD calipers and pads)
  • Brake upgrade – stage 3 (big discs, 6-piston calipers front, 4-piston calipers rear and pads)
  • Suspension upgrade – stage 2 (HD antiroll bars)
  • Suspension upgrade – stage 3 (high-performance springs and dampers for high-speed driving)
  • Heavy Duty 18” alloy rims with run-flats
  • Gun-ports
  • 2-way intercom
  • Police siren and Public-Address system
  • Front and rear strobe-lights integrated into OEM light lenses
  • Bull-bar
  • Communications equipment (VHF, UHF, satellite…)
  • Electronic Counter Measure Equipment (RF Jammer)
  • Video recording/surveillance equipment
  • Higher ballistic protection level
  • Additional blast protection
